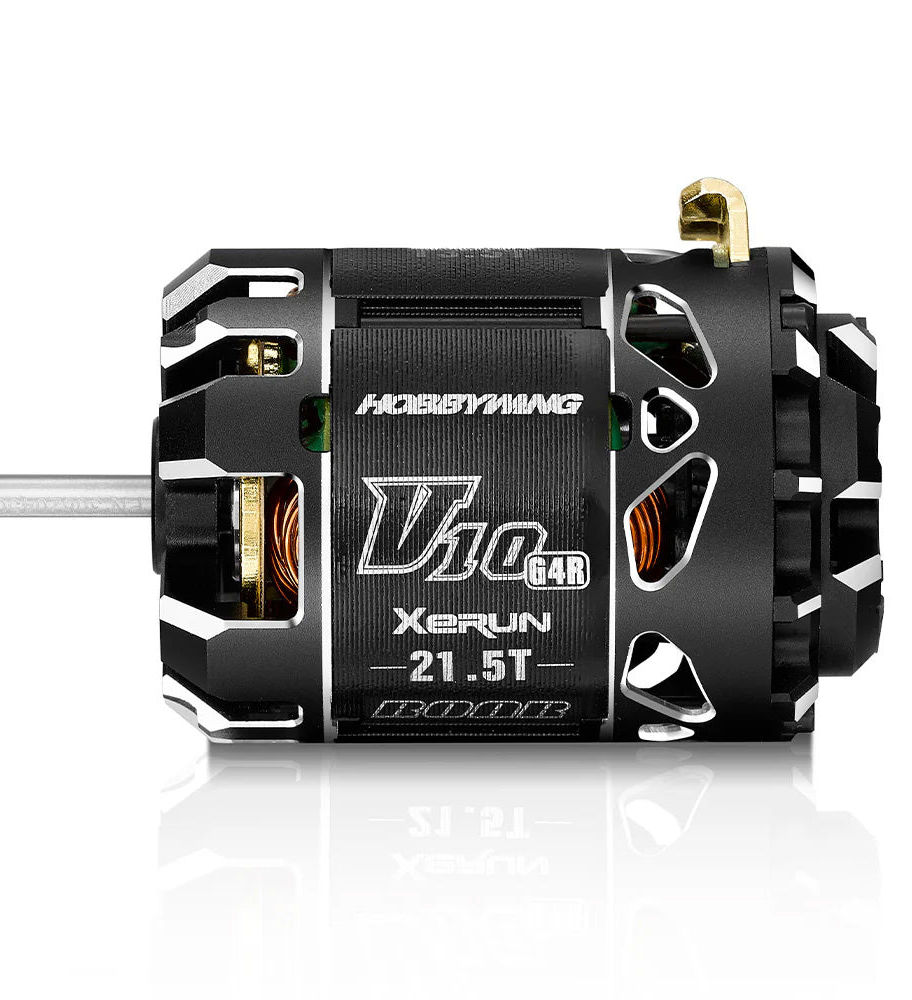

Hobbywing G4R 21.5T ROAR Sensored Stock Motor HW-30401744

This is Hobbywing Xerun V10 G4R Competition Stock Brushless Motor. Specially designed for 1/10 and 1/12 ROAR Stock racing, this Xerun V10 G4R is equipped with a high-performance stator core, built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness, innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation and dual sensor interface design to meet various wiring/layout requirements! Making this Xerun V10 G4R the ultimate ROAR approved weapon of choice for 1/10 and 1/12 Stock racing

Feature:

Specially designed for 1/10 -1/12 Stock racing

High-performance stator core

Built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness

Innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation

Rear end of the motor is a big opening structure to further improve the heat dissipation effect

Dual sensor interface design to meet various wiring/layout requirements

Widened copper bar spacing for easier wire soldering

High precision and high strength bearings, and copper solder tabs

Specification:

ROAR Approved: Yes

Turns: 21.5T

kV Rating: 2600kV

Outer Diameter: 35.8mm

Length: 51.3mm

Shaft Diameter: 3.175mm

Weight: 158g

Poles: 2

Front Bearing: 9x4x4mm

Rear Bearing: 8x3x4mm

No Load Current: 5.4A

Adjustable Timing: 20-60 degrees

Applications: 1/10th Stock Class Racing

Input Voltage: 1-2S LiPo (3.2-7.4V)
